Ametek Jofra CSC100 DC Loop Calibrator

    The CSC line of signal calibrators are dedicated units designed
to make your calibration and maintenance tasks easier to perform.
The JOFRA CSC100 is engineered for instrument loop calibrations
and is specifically manufactured for 4 to 20 mA loops; however
this versatile instrument offers much more than that.

    This calibrator can source and read current and voltage; including
millivolts. It can also be used as a signal simulator to test your
transmitters without the need for actual operation.

    The CSC100 also offers features such as an auto-stepping function,
an isolated read-back circuit, and fuse-less protection. These handy
time savers are ombined in a package offering with an easy-to-read,
two line display and an intuitive keypad with a knob for fine
adjustments.

    This calibrator is more than a simple tool but it is as easy to use as
any device that you have in your toolbox. The CSC100 signal calibrator
offers you the accuracy and features that you need in a convenient,
compact, and easy to use package.

Features:
      • Input und Output:
           Current: 0 to 24 mA
           Voltage: 0 to 200 mVDC
                        0 to 20 VDC (source)
                        0 to 28 VDC (read)
      • Fuse-less protection for internal circuitr
      • Auto-step feature for Automatic Tests
      • User-friendly controls with knob and keypad
      • Easy function specific operations and adjustable values
      • Accuracy up to +/- 0.015% of reading
      • Large LCD Display
      • Percentage display, and dedicated icons for calibrator status
      • 250 Ohm HART resistor 250 HART device communications

All Ametek JOFRA handheld calibrators are supplied in a handy soft case that allows for operation while in the case. The convenient internal storage pocket offers the space for test leads and accessories

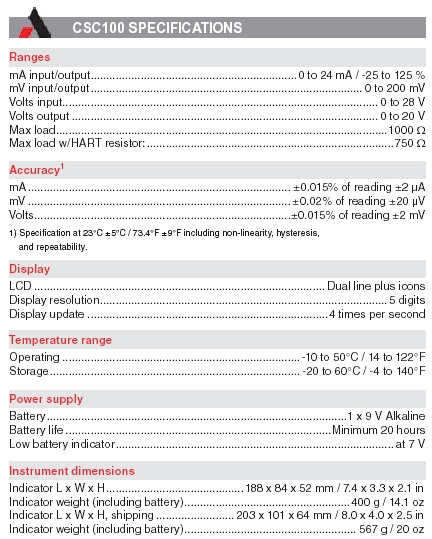

Specifications:
