Ashcroft 2089 Digital Pressure Test Gauge
Available to an accuracy level +/-0.05% of Full Scale
The Ashcroft® 2089 precision digital test gauge features the industry's smallest case (3"), and the largest display - larger than even competitors' 4" gauges. The display exclusively offers backlighting with adjustable contrast levels. This Ashcroft gauge is
so versatile; it can be used in applications from test stands to fluid processes. The Precision Digital Gauge features 12 selectable engineering
units, 6 languages and it can be calibrated in the field. Calibration and dampen modes are password protected. Three AAA Alkaline batteries
provide over 1000 hours of battery life. The gauge is CE approved and FM approved for intrinsically safe operations, Class 1, Division 1 in ranges above 15 PSIG. It is available in vacuum through 7000 psi.
FEATURES:
• +/-0.05% FS Total Accuracy
• Compact 3" Dial
• Large, 0.66" Backlit LCD Display
• Adjustable LCD Contrast w/Bargraph
• Temperature Compensated to 150 F
• Reads in 12 Engineering Units & 7 Languages
• Field Recalibration is Easy
• Password Protected Set-Up
• CE & FM Approved Intrinsically Safe, Class1, Division 1 (Ranges Above 15 PSIG)
• 4 Selectable Update/Scan Rates
• Dampening, 5 Average Points
• 5 Auto-Off Options
• All Stainless Steel NEMA 4 Case & Internals
• MAX/MIN Button
• 2X Over Pressure Protection, Meets ASME B40.7
TECHNICAL SPECIFICATIONS:
| Type: |
Model 2089 (0.05% F.S. Accuracy) |
| Accuracy: |
0.05% Full Scale
Includes Hysteresis, Linearity, Repeatablilty & Temp Comp. |
| Case Size: |
3-1/2" |
| Case Material: |
300 Series Stainless Steel, Electropolished |
| Case Rating: |
Weatherproof, IP65, NEMA 4 |
| Wetted Parts: |
316 Stainless Steel |
| Socket Size: |
1/4" NPT Standard, JIS, DIN, SAE, (others on application) |
| Connection: |
Lower Mount - 3 & 9 O'clock (Options) |
| Ranges: |

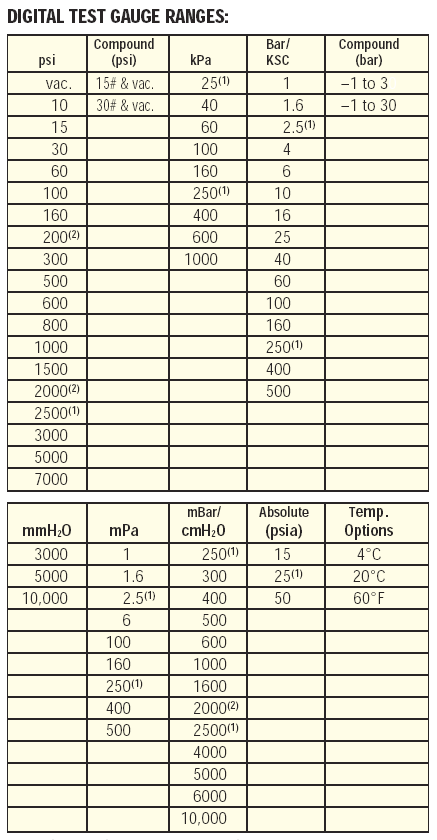

Vacuum Thru 7000 psi (See Range Table) |
| Operating Temp.: |
0 - 150 F (-18 - 63 C) |
| Storage Temp.: |
-40 - 180 F (-40 - 82 C) |
| Temp. Corrected: |
Yes |
| Display Type: |
LCD, 4.5 Digits, 19999 Counts |
| Character Height: |
0.66" |
| Backlite: |
Off by Default |
| Bar Graph: |
Yes |
| Battery Life: |
>1000 hrs. (3 AAA alkaline batteries) |
| Agency Approvals: |
CE EN 50082-1 (1997), FM & CSA |
| Key Pad Functions: |
On/Off: Manually turns unit on and off
Backlite: Manually turns backlite on and off
Min/Max: Stores min. and max. values when displayed
Zero/Clear: Zeros display or clears min. and max.
Enter: Selects items in configuration menu (CONFIG) |
| Configuration Mode: |
Allows scrolling through configuration menus to select
available options |
| Engineering Units: |
psi,"Hg, "H2O, ftSW, Bar, mBar, kPa, mPa, mmHg,
cmH2O, mmH2O, kg/cm2 |
| Update Rate: |
Four Options: 10x/Sec, 5x/Sec, 2x/Sec, 1x/Sec |
| Auto Off: |
Five Options: Never, 2 Min., 5 Min., 15 Min., 30 Min. |
| Dampening: |
Five Options: None, Average 2, 4, 6, 8 Readings |
| Language: |
Seven Languages: English, Spanish, French, Italian,
German, Portuguese, Dutch |
| Backlite: |
Five Options: On/Off, 10 Sec., 30 Sec., 1 Min., 5 Min. |
| Calibrate: |
Zero and Span (Password Protected) |
| Contrast: |
Seven Available Options |
| Disable: |
Allows for "lock-out" of CONFIG options |
| Standard Features: |
300 Series SS Protective Cover, Protective Carrying Pouch |
(1) Range No Longer Available
(2) Accuracy meets ASME B40.7 resolution requirements
through 199.9 psi (200 psi) and 1999.9 psi (2000 psi).
Note: The 2089 Reads in 12 Engineering Units, Order your range in PSIG and you
will be able to change units easily |
