Ashcroft Model 1084 Pocket Test Gauge
|
Item Number: 30-1084-S-02L
Manufacturer: Ashcroft
Manufacturer Part No: 30-1084-S-02L
Product Options
* denotes required field
Ashcroft 1084 Pressure Range Selection*
You must select an option for 'Ashcroft 1084 Pressure Range Selection'.
Ashcroft 1084 Protective Cover*
You must select an option for 'Ashcroft 1084 Protective Cover'.
* Whole number only
|
|

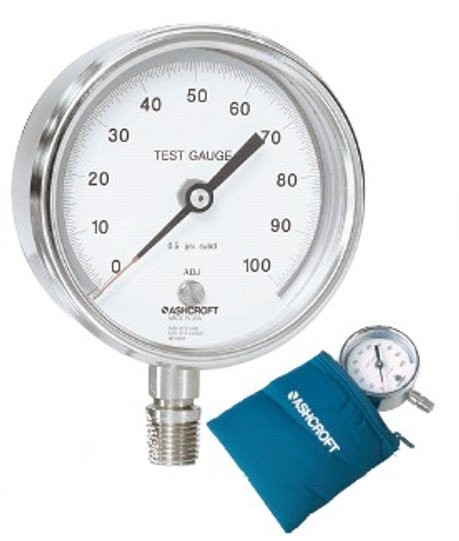

Ashcroft Model 1084 Pocket Test Gauge
With an accuracy of ±0.5%, Grade 2A, plus rugged stainless steel construction, the Ashcroft® Type 1084 more than exceeds the requirements for on-the-spot inspections. To improve accuracy, stability, and socket thread life, the Bourdon tube and socket assembly is made of type 316 stainless steel with allwelded construction; this system is standard for all ranges. To make reading easier and faster, each unit is provided with a new, highly readable dial. Reading error caused by parallax is eliminated by aligning the knife-edge tip pointer with its reflection in the mirror band on the dial. Also available is an optional stainless steel cover that fits securely over the window and protects the gauge from damage while being carried in a tool box or pocket. An attractive, cushioned Nylon fabric pouch with carrying strap is offered as standard equipment.
Ashcroft 1084 Features:
-
Available in a 3" dial size
-
Stainless Steel movement with Teflon-coated bearings and pinion gear
-
Black, adjustable pointer with red-painted knife-edge tip
-
Stainless steel construction
-
Zero-adjustable white aluminum dial with polished mirror band
-
¼" NPT lower connection only
Ashcroft 1084 Specifications:
|
Case
|
Polished Stainless Steel
|
|
Dial
|
Zero adjustable, aluminum, white background with black numerals, with polished mirror band.
|
|
Pointer
|
Black painted aluminum with red painted knife edge tip.
|
|
Movement
|
Stainless steel with Teflon "S" coating bearing and pinion.
|
|
Bourdon Tube Material
|
Stainless steel.
|
|
Accuracy
|
±0.5%/ASME B40.1, Grade 2A.
|
|
Connection
|
¼" NPT, lower only.
|

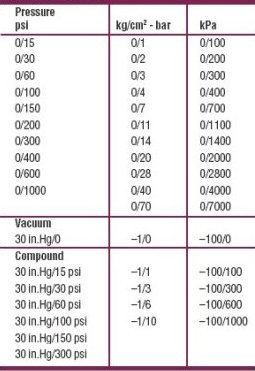

Ashcroft 1084 Standard Ranges:
 |
