Martel BetaPort-P Pressure Calibrator Module
|
Item Number: BetaPort-P
Manufacturer: Martel Electronics (Beta)
Manufacturer Part No: BetaPort-P
|
|

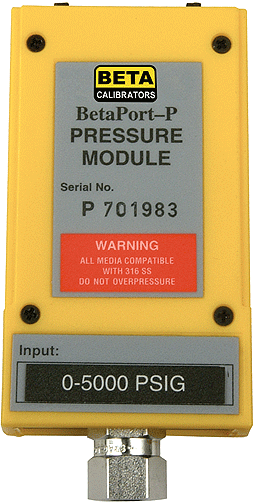

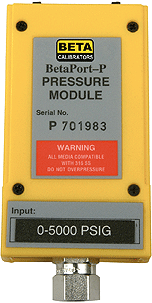

Martel BetaPort P Pressure Calibrator Module
The Martel BetaPort-P pressure modules are available in 29 ranges from inches of water to 10,000 PSIG. Absolute, Gauge and Differential configurations are available. BetaPort modules can be plugges directly into the Martel BetaGauge II calibrator or many Martel pressure calibrators by using the optional BPPA-100 adapter. These modules are compatible with the Martel DCM-1410, MC-1210, MC-1010, Betagauge 330, Betagauge 311A/321A, Betagauge 301, MC-3001, MC-2001 calibrators.
Features
-

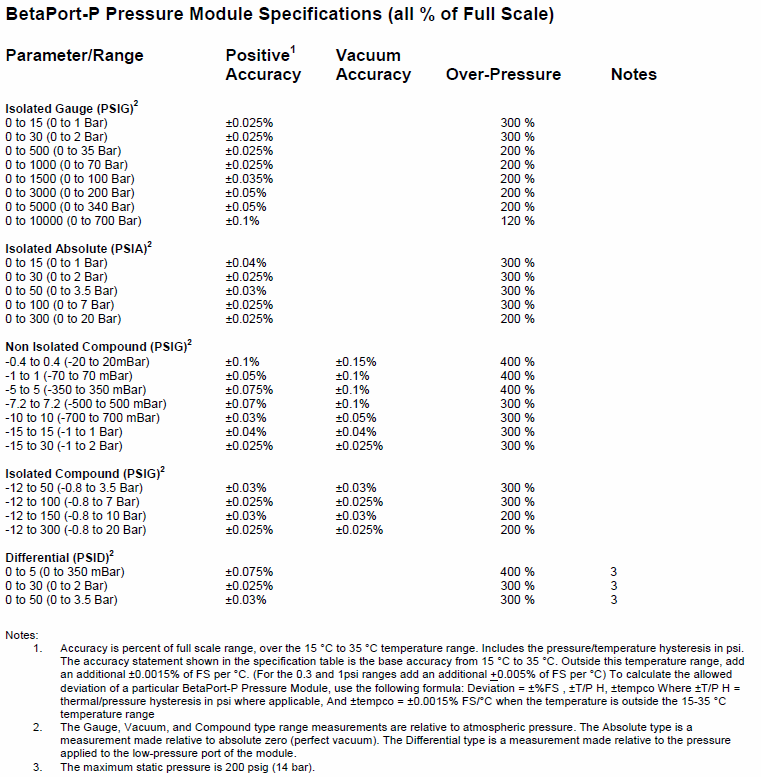

29 standard ranges
-
Readouts up to 13 pressure units, depending on range, resolution of the host calibrator
-
Gauge, vacuum, absolute, compound and differential measurements from inches H2O to 10,000 psi
-
Accuracy specified over 15°C to 35°C range
-
Isolated and non-isolated measurements, range dependant
-
+/-0.025% full scale accuracy
-
Includes factory test report, Accredited and Standard calibration certificates availabe as an option
|
Hard Instrument Carry Case with Pluck Foam to fit your instruments. 100's of sizes & styles available. Call for Details
|
OUR PRICE: This unit has been discontinued. Please call (732) 632-6400 for replacement options
The Martel BPPA-100 BETA Port Pressure Adapter allows Martel Betaport-P pressure calibrator modules to be connected to most Martel pressure and multi function calibrators.
|
|
|
