The CMM-17 Replaces the Popular Extech CMM-15
The Extech CMM-17 Process Calibrator combines the
functionality of a calibrator with a TRMS Multimeter. It has
the ability to source DC Volts and mA in programmable or
timed steps. It also has the ability to source frequency.
Optional PC software is available for remote operation and
data logging.
Features:
Calibrator Features:
• Simultaneous Source and Measure on Large Dual Display
• Precision 0.03% Voltage and Current Calibration Source
• Constant Current Output for Loads Up to 1200 ohms
• Bipolar Current (+/-25mA) and Voltage
(+/-1.5V, +/-15V) Outputs
• Simultaneously Source Excitation Voltage and
Measure mA Output of 2-Wire Transmitters
• Wide Range Frequency (Square Wave) Source with
Adjustable Amplitude, Pulse Width, and Duty Cycle
• Programmable for 16 Continuous or Timed Step Outputs
• Programmable 999 Step Ramp
• Optional PC Windows Software for remote
operation & recording
Multimeter Features:
• Measure DCmA, ACmA, DCV, ACV, AC+DC,
Temperature, Frequency,
• Measure Duty Cycle, Pulse Width, Resistance,
Continuity, and Diode
• 1micro-V or 1 micro-A Resolution and 0.03% Basic
DCV Accuracy (400mV-40V)
• 1ms Peak Hold for glitch capture
• Plus Data Hold, Auto Hold, Relative and
Dynamic Recording
• True RMS Measurement for non-linear loads
General Features:
• True RMS Measurement for Non-Linear Loads
• Built-In Isolated RS-232 Interface for Data Acquisition
• Documentation with Windows Data Acquisition Software
• Large 50,000 Count Backlit LCD
• Displays Primary, Secondary, Source/Measure Ranges
and Functions Selected
• Separate Input/Output Banana Jacks with Fused Protection
• Auto Power Off with Disable Function
• Includes test leads, Type K Temp Probe, Battery,
Recharger/AC Adapter, Carry Case

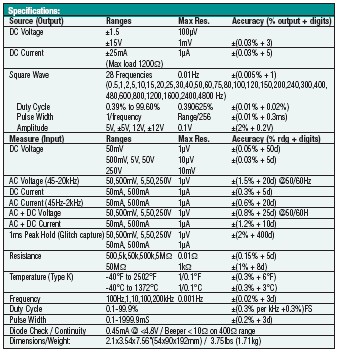

Technical Specifications:
