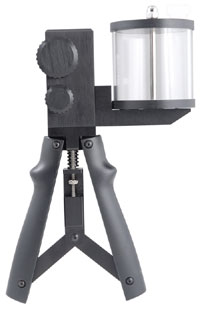

Martel MECP10K 10,000 PSIG Hydraulic Pressure Calibration Pump

The Martel MECP10K generates up to 10,000 psig using a variety of fluids including water or oil.

Martel MECP10K 10,000 PSIG Hydraulic Pressure Calibration Pump

The MECP10K Hydraulic Pressure Test Pump works with a variety of hydraulic
fluids or even common tap water to easily generate test pressures up to 10,000 PSI (700 Bar).
It uses a unique fully adjustable stroke control to allow for fast priming or filling of test systems,
and then switching as needed to a smaller stroke for easier pumping at high pressure.

The output pressure can be fine tuned using the vernier control. A precision needle valve allows
controlled venting for exacting pressure calibration requirements. The pump features two (2) connections
for ease of use. There is a top side 1/4" female NPT fitting for connection of test gauges or calibrators
and a 1/4" female NPT side fitting to connect to the device under test.

In addition to the bare pump, the MECP10K is offered in kit form with a hard sided carrying case and a
special high pressure flexible connection hose.

Specifications:

Maximum working pressure: 10,000 PSI
Connections: (1) 1/4" female NPT (Top): (1) 1/4" Female NPT (Side)
Accessories: Optional Kit including hard sided carrying case and one (1) flexible test hose
Fluid compatibility: Compatible with most hydraulic fluids and oils and water

Price: $759.00
Buy Product Online | Visit Store Home

Manufactured by Martel Electronics (Beta)
