Crystal Engineering APM CPF Series Advanced Pressure Module
|
Item Number: APM
Manufacturer: Crystal Engineering (Ametek)
Manufacturer Part No: APM
Product Options
* denotes required field
Pressure Range Selection*
You must select an option for 'Pressure Range Selection'.
* Whole number only
|
|

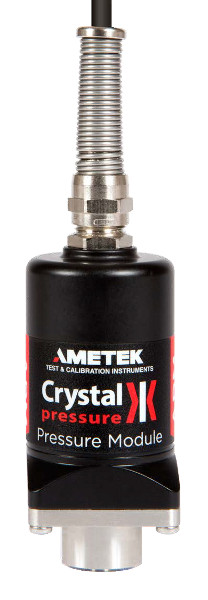

Crystal Engineering APM CPF Series Advanced Pressure Module
The APM CPF Series portable pressure modules offer the functionality and flexibility to perform pressure calibrations with a multifunction signal calibrator. Or, combine with a hand-help pressure calibrator to expand its range. The APM delivers the same high level accuracy whether in the lab or in the field.
Features
- Accuracy to 0.025% of Reading
- Temperature Compensated from -20 to 50°C
- Integrated CPF Connection
- Seven Ranges Available
- Rugged Cast Aluminum Housing
- Self-Contained, Intelligent Modules
Technical Specifications
| Includes all effects of linearity, hysteresis, repeatability, temperature, and stability for one year. |
| All models indicate vacuum, but vacuum specification applies to 30, 100, and 300 psi models only. |
| Not recommended for continuous use below -14.5 psi. Refer to the XP2i-DP data sheet for gauges that are intended for continuous high vacuum use. |
| psi (Gauge Pressure) |
bar (Gauge Pressure) |
| 30, 100, and 300 psi modules |
3, 10, and 30 bar modules |
| 0 to 30% of Range: |
± (0.0075% of Full Scale) |
0 to 30% of Range: |
± (0.0075% of Full Scale) |
| 30 to 110% of Range: |
± (0.025% of Reading) |
30 to 110% of Range: |
± (0.025% of Reading) |
| Vacuum (30 & 100 psi) |
± (0.06 of Full Scale*) |
Vacuum (3 & 10 bar) |
± (0.06 of Full Scale*) |
| Vacuum (300 psi) |
± (0.06 of Full Scale*) ± 1 LSD |
Vacuum (30 bar) |
± (0.06 of Full Scale*) ± 1 LSD |
| |
* Full Scale = -14.5 psi |
|
* Full Scale = -14.5 psi |
| |
|
|
|
| 1000 and 3000 psi modules |
100 and 300 bar modules |
| 0 to 30% of Range: |
± (0.015% of Full Scale) |
0 to 30% of Range: |
± (0.015% of Full Scale) |
| 30 to 110% of Range: |
± (0.05% of Reading) |
30 to 110% of Range: |
± (0.05% of Reading) |
|
| |
|
|
|
| 10 000 and 15 000 psi modules |
700 and 1000 bar modules |
| 0 to 30% of Range: |
± (0.03% of Full Scale) |
0 to 30% of Range: |
± (0.03% of Full Scale) |
| 30 to 110% of Range: |
± (0.1% of Reading) |
30 to 110% of Range: |
± (0.1% of Reading) |
| psiA (Pressure with BARO module) |
barA (Pressure with BARO module) |
| 30 psi module |
3 bar module |
| 0.200 to 14.500: |
± 0.011 psiA, typical |
0.0138 to 1.0000: |
± 0.0008 barA, typical |
| 14.5000 to 44.500: |
± (0.025% of Reading) + 0.003 psiA |
1.0000 to 4.0000: |
± (0.025% of Reading) + 0.0003 barA |
| |
|
|
|
| 100 psi module |
10 bar module |
| 0.200 to 14.500: |
± 0.011 psiA, typical |
0.0138 to 1.0000: |
± 0.0008 barA, typical |
| 14.500 to 44.500: |
± 0.011 psiA |
1.0000 to 4.0000: |
± 0.0010 barA |
| 44.500 to 114.500: |
± (0.025% of Reading) |
4.0000 to 11.0000: |
± (0.025% of Reading) |
| |
|
|
|
| 300 psi module |
30 bar module |
| 0.20 to 14.50: |
± 0.01 psiA, typical |
0.014 to 1.000: |
± 0.001 barA, typical |
| 14.50 to 104.50: |
± 0.03 psiA |
1.000 to 10.000: |
± 0.003 barA |
| 104.50 to 314.50: |
± (0.025% of Reading) |
10.000 to 31.000: |
± (0.025% of Reading) |
| |
|
|
|
| 1000 psi module |
100 bar module |
| 14.5 to 314.5: |
± 0.2 psiA |
1.000 to 31.000: |
± 0.015 barA |
| 314.5 to 1014.5: |
± (0.05% of Reading) |
31.000 to 101.000: |
± (0.05% of Reading) |
| |
|
|
|
| 3000 psi module |
300 bar module |
| 14.5 to 914.5: |
± 0.5 psiA |
1.00 to 91.00: |
± 0.05 barA |
| 914.5 to 3014.5: |
± (0.05% of Reading) |
91.00 to 301.00: |
± (0.05% of Reading) |
| |
|
|
|
| 10 000 psi module |
700 bar module |
| 15 to 3015: |
± 3 psiA |
1.00 to 211.00: |
± 0.21 barA |
| 3015 to 10 015: |
± (0.1% of Reading) |
211.00 to 701.00: |
± (0.1% of Reading) |
| |
|
|
|
| 15 000 psi module |
1000 bar module |
| 15 to 4515: |
± 5 psiA |
1.00 to 301.00: |
± 0.30 barA |
| 4515 to 15 015: |
± (0.1% of Reading) |
301.00 to 1001.00: |
± (0.1% of Reading) |
| Wetted Materials: |
316 stainless steel* |
*Wrench tight. Finger tight also includes Viton o-ring. |
| Diaphragm Seal Fluid: |
Silicon Oil |
All welded, with a permanently filled diaphragm seal. |
| Connection: |
Crystal CPF Female |
Metal/Metal cone seal; O-ring can be removed. |
| |
|
1/4" male NPT adapter included unless BSP, M20 or 15KPSI is specified. |
| |
|
1/4" medium pressure tube system compatible with HiP LM4 and LF4 Series, Autoclave Engr SF250CX Male and Female Series. |
| Temperature Range: |
-20 to 50°C (-4 to 122°F) |
<95% RH, non-condensing. No change in accuracy over operating temperature range. |
| |
|
Applies to all modules. |
| Weight: |
680 g (24.0 oz) |
Weight includes one pressure module, one RTD module, 4AA battery module, and protective boot. |
| Housing: |
Impact resistant injection molded |
LCD protected from impact damage by 1.5 mm (0.06") thick polycarbonate lens. |
| Dimensions: |
M4 x 0.7 [8 mm (0.31")] deep threaded insert mounting locations |
|
| Temperature Range: |
-40 to 75°C (-40 to 167°F) |
Batteries should be removed if stored for more than one month. |
|
Ametek ASC-400 combines with an APM CPF pressure module to calibrate pressure and a JOFRA dry block to measure temperature. Current 0-24 mA DC, Voltage, 0-20 VDC, Frequency 0.05 to 10,000 Hz
| |
|
|
