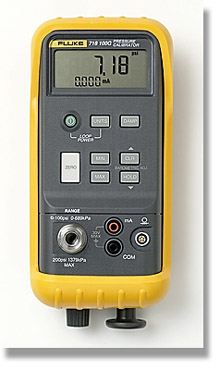

Fluke 718 100 PSIG Pressure Calibrator
|
Item Number: FLUKE-718 100US
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-718 100US
* Whole number only
|
|
Fluke 718 Pressure Calibrator
The Fluke 718 Pressure Calibrator offers a new approach to pressure calibration. A complete,self-contained calibrator solution.
Features:
-
Built-in Pressure / vacuum hand pump, with vernier and bleed valve
-
Pressure measurement to 0.05% of full span, using an internal pressure sensor
-
-
Wide range of selectable measurements units for pressure
-
Current Measurement with 0.025% accuracy and 0.001 mA resolution
-
24 volt loop power supply
-
1/8 inch NPT female pressure fitting
-
Min-Max Hold functions
-
Compact size and weight
-
Simple push-button user interface
-
Rugged and reliable, ideal for field use
Technical Specifications:
718
30G |
718
100G |
Function |
Range |
Resolution |
Accuracy |
Notes |
| X |
|
Measure Pressure*
(internal sensor)
Over Pressure 3xFS |
-12 to 30 psi
(-83 to 207 kPa) |
0.001 psi
(0.01 kPa) |
0.05% full scale |
Gasses/liquids
(use the 718 with non-
corrosive gases only)
Zero, Min, Max, Hold, Damp |
|
X |
Measure Pressure*
(internal sensor)
Over Pressure 2xFS |
-12 to 100 psi
(-83 to 690 kPa) |
0.001 psi
(0.01 kPa) |
0.05% full scale |
Gases/Liquids
(non-corrosive)
Zero, Min, Max, Hold, Damp |
| X |
X |
Measure Pressure*
(with Pressure
Modules) Over
pressure per pressure
module specs |
28 Pressure
Modules, 1.0 in. Water/
0.25 kPa to 10,000 psi/
69 MPa |
To 0.0001 psi,
per Pressure
Module specs |
To 0.05% of full
span, per Pressure
Module Specs |
Media Compatibility
per Pressure Module
Specs
Zero, Min, Max,
Hold, Damp |
| X |
X |
Source Pressure,
Built-in pump |
-11 psig to full scale |
N/A |
N/A |
Use the 718 with non-
corrosive gases only |
| X |
X |
Measure mA |
0 to 24 mA |
0.001 mA |
0.025% + 1 count |
|
| X |
X |
Loop Supply |
24 VDC |
N/A |
± 10% |
Drive;20 mA into 1000W
for battery >6.8V; 700W
for battery 5.8 to 6.8V |
| Maximum voltage: |
30 volts |
| Non-operating temperature: |
-40C to 60C |
| Operating voltage: |
-10C to 55C |
| Relative humidity: |
95% (10C to 30C)
75% (30C to 40C)
45% (40C to 50C)
35% (50C to 55C) |
| Operating altitude: |
3,000m max |
| Shock: |
1m drop test |
| Vibration: |
Random, 2g, 5-500 Hz |
| Safety: |
CSA C22.2 No. 1010.1:1992 |
| EMC: |
EN50082-1:1992 and EN55022:1994 Class B |
| Size/weight (718): |
210 mm L x 83mm W x 62 mmD
(8.25 in L x 3.27 in W x 2.44 in)
737g (26 oz) |
| Size/weight, (718 with holster): |
216 mm L 94 mm W x 66 mm D
(8.50 L x 3.72 in W x 2.60 in D)
992g (35oz) |
| Power: |
9V battery ANSI/NEDA 1604A or
IEC 6LR619V alkaline: two batteries in 718 |
| Battery Life: |
4 to 20 hours, typical, depending on
Functions used |
| Warranty: |
Three years (one year on pressure pump
In Fluke 718) |
*Supported Pressure Units; psi, in. water(4 C), in.
water(20 C), cm water(4 C), cm, water(20 C),
bar, mbar, kPa, inHg mmHg, kg/cm2 |
|
|
|
|
