Martel TC-100 Thermocouple Calibrator

<< Previous in Martel Beta Calibrators Next in Martel Beta Calibrators >>
OUR PRICE: This unit has been discontinued. Please call (732) 632-6400 for replacement options
Item Number: TC-100
Manufacturer: Martel Electronics (Beta)
Manufacturer Part No: TC-100
Martel TC-100 Calibrator

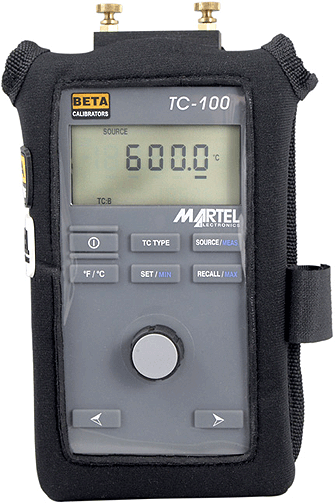

Martel TC-100 Thermocouple Calibrator

     The Martel TC-100 Thermocouple Calibrator provides high accuracy source and measurement of ten common thermocouples, as well as mV. The TC-100's accuracy of +/-0.3 C for Type J T/Cs includes all errors, at resolutions of +/-0.01 C or F in measure mode and +/-0.1 C or F in source mode. Features including  MIN/MAX recall in measure mode, three setpoints per thermocouple range, a large knob for decade control of the output in source mode, and the ability toaccept bare T/C wires in addition to mini-plug inputs, makes the TC-100 an accurate, easy-to-use instrument for all your thermocouple calibration needs.


Features:
  • High Accuracy - +/-0.3 C (Type J T/C all Errors Combined)
  • Ten (10) Common T/C Types Plus mV

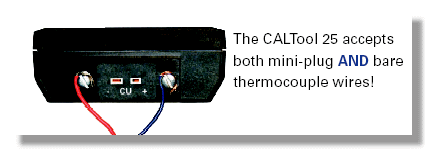

  • Accepts Both T/C Mini-Plug and Bare T/C Wires
  • Simple Decade Control of Output
  • Three (3) Setpoints for each T/C Type
  • MIN/MAX Recall in Measure Mode
  • Input Protection to 240 VAC
  • Passworded User Interface Allows Selction of Only Certain Functions
  • Two Digit Resolution in measure mode ie 100.00
  • Doubles as a Highly Accurate Thermometer


    Technical Specifications
     (1 year at 23 C +/-5 C; % of reading unless otherwise noted):

    Output Voltage Range: -10 to +75.000 mV
    Resolution: 1 uV
    Accuracy: +/-0.007 % of reading, +/-10 uV
    Output Impedance: =1 Ohm
    Input Voltage Range: -10 to +75.000 mV
    Resolution: 1 uV
    Accuracy: +/-0.007 % of reading, +/-10 uV
    Input Impedance: > 1 MegOhm
    Types: J, K, T, E, R, S, B, L, U, C
    Range: mV
    Resolution: Source +/-0.1 C or F
    Measure +/-0.01 C or F
    Accuracy: J +/-0.5 C; -210 C to -100 C
    +/-0.3 C; -100 C to +1,200 C
    K +/-0.6 C; -200 C to -100 C
    +/-0.35 C; -100 C to +1,000 C
    +/-0.5 C; +1,000 C to +1,372 C
    T +/-0.7 C; -200 C to -150 C
    +/-0.3 C; -150 C to +400 C
    E +/-0.5 C; -200 C to -100 C
    +/-0.3 C; -100 C to +1,000 C
    R +/-1.8 C; 0 C to 250 C
    +/-1.0 C; 250 C to +1,767 C
    S +/-1.8 C; 0 C to 250 C
    +/-1.0 C; 250 C to +1,767 C
    B +/-1.7 C; 600 C to 1,000 C
    +/-1.2 C; 1,000 C to 1,820 C
    L +/-0.5 C; -200 C to -100 C
    +/-0.4 C; -100 C to +900 C
    U +/-0.7 C; -200 C to 0 C
    +/-0.3 C; 0 C to +600 C
    C +/-0.4 C; 0 to C 1,000 C
    +/-0.7 C; 1,000 C to +1,800 C
    +/-1.2 C; +1,800 C to +2,316 C
    CJC Temperature Offset: +/-0.05 C/ C outside of 23+/-5 C
    Warm-up Time: 1 minute to specification
    Environmental: Operating -10 C to +55 C
    Storage -20 C to +70 C
    Power Requirements: Battery 9 Volt alkaline; 006P/ IEC 6F22/
    NEDA1604
    Optional NiCad
    Optional AC adapter/charger
    Mechanical Dimensions: 5.7" x 3.15" x 1.43"
    (14.47 cm x 8.00 cm x 3.63 cm)
    Weight: 12 ounces (340 grams)
    Notes: Temperature Standard ITS-90
