Martel LC-100 Current Loop Calibrator

OUR PRICE: Discontinued Replaced by Fluke 705
Item Number: LC-100
Manufacturer: Martel Electronics (Beta)
Manufacturer Part No: LC-100

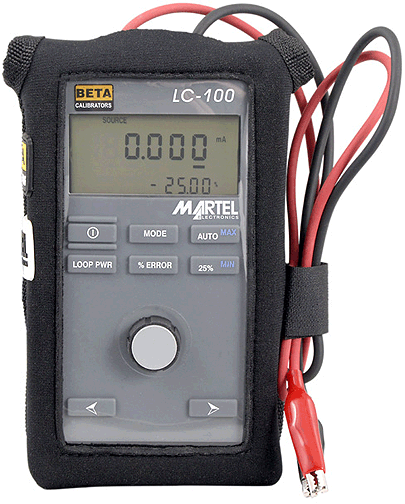

Martel LC-100 Current Calibrator


    The Martel Electronics LC-100 Precision Loop Calibrator provides significantly extended performance when compared to any competitive calibrator. With an accuracy of 0.015% of reading, with 0.001 mA resolution, the LC-100 has the highest accuracy in its class.  Unique features, such as a "% Error" function, which eliminates manual error calculation and allows the display of the actual versus ideal error at any calibration point, put the LC-100 way beyond similar instruments. The Martel LC-100 can simulate, power, and measure two-wire transmitters. With automatic Step and Ramp functions, the LC-100 enables remote calibration of 4-20 mA devices.

Features:
  • Very high accuracy - +/-0.015% of reading
  • Very high resolution - 0.001 mA
  • Fuseless input protection up to 250 VAC
  • % Error function - eliminates manual error calculation
  • Extended adjustment range - digital knob and user-selectable decade output allow both large and incremental (0.001 mA step) output changes
  • Reads 0 to 28.000 VDCReads 0 to 28.000 VDC
  • Built-in 250 Ohm resistor facilitates calibration of Hart™ devices
  • Remote calibration through Automatic Step and Ramp functions
  • Loop power measurement capability
  • Simulates, powers, and measures two-wire transmitters
    Five preset outputs (4, 8, 12, 16, 20 mA)


    Technical Specifications:

    Input Range 0.000 to 24.000
    -25.00% to 125.00%
    Output Range
    Source/Stimulate
    0.000 to 24.000
    -25.00% to 125.00%
    Read VDC 0 to 30 VDC
    Accuracy

    +/- 0.015% of Reading
    +/- 2 micro-amps

    Resolution 1 uA (0.001 Display)
    Loop Supply Voltage 24 VDC
    Typicial Drive Capability 1200 Ohm w/o HART
    950  Ohm/ with HART
    Auto % Error Function Yes
    Selectable Decade Adjustment Yes
    Auto Step/Ramp Yes
    Preset Outputs 5
    Loop Power Measure
    Capability
    Yes
    Operating Temp -10 to 55 Deg C
    Power Supply (1) 9V Battery
    Rechargeable Battery Option Yes
    AC Adapter Yes
    Size 5.7" x 3.15" x 1.43"
    Weight 12 Oz..
