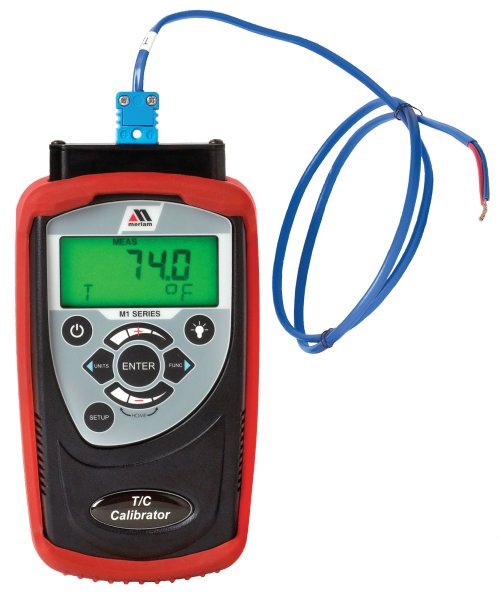

Meriam M130 Thermocouple Calibrator
|
Item Number: M130
Manufacturer: Meriam Instruments
Manufacturer Part No: M130
|
|
Meriam M130 Thermocouple Calibrator
The M1 Series of handheld calibrators from Meriam Process Technologies combines form, fit and function to deliver precision measurement for field, plant or lab use.
Features
-
Measure and source thermocouples
-
Large, easy to read display with backlight
-
Shirt pocket convenience
-
Cold junction compensation
-
T/C simulation (manual or auto)
-
3 programmable auto step routines (Units, T/C Type, LRV, URV, STEPS & DWELL TIME)
-
3 programmable auto ramp routines (Units, T/C Type, LRV, URV, STEPS UP/DOWN TIME, DELAY)
-
Auto step simulation (0-100% or 25% increments) with definable LRV & URV
Technical Specifications
|
Thermocouple Types
|
Type B, E, J, K, N, R, S, T and millivolts
|
|
Accuracy
|
± 0.005% Reading ± 6 µV
|
|
Engineering Units
|
Displays the temperature of a T/C in °C, °F, °R, K and millivolts
|
|
Record Mode
|
Store up to 240 temperature measurements.
-
Automatic – the current value is automatically stored every 5 seconds, for up to 20 minutes.
-
Manual – the current value is stored each time the Units key is pressed, up to 240 times.
|
|
Backlight
|
A green backlight is user activated via the backlight key. A red backlight is automatically activated during an over range condition.
|
|
Auto Shutoff
|
To conserve battery life, the M130 will automatically power off after 30 minutes of keypad inactivity.
|
|
Low Battery Indication
|
BAT icon is displayed when batteries require replacement. Approximately 2 hours of run time remains when BAT appears.
|
Measurement & Simulation Accuracy Table
|
T/C
Type
°C
|
± 3.0°C
Accuracy
|
± 2.0°C
Accuracy
|
± 1.0°C
Accuracy
|
± 0.5 °C
Accuracy
|
± 0.4°C
Accuracy
|
± 0.3°C
Accuracy
|
± 0.2°C
Accuracy
|
± 0.1°C
Accuracy
|
|
E
|
|
|
|
|
|
-200 to -179
|
-179 to 15
|
15 to 1000
|
|
J
|
|
|
|
|
|
-200 to -165
|
-165 to 1200
|
|
|
K
|
|
|
|
|
-200 to 1372
|
|
|
|
|
N
|
|
|
|
|
|
-200 to 110
|
110 to 1300
|
|
|
T
|
|
|
|
|
-200 to -168
|
-168 to -86
|
-86 to 346
|
346 to 400
|
|
R
|
|
-50 to 27
|
27 to 736
|
736 to 1768
|
|
|
|
|
|
S
|
|
-50 to 25
|
25 to 1179
|
1179 to 1768
|
|
|
|
|
|
B
|
250 to 295
|
295 to 605
|
605 to 1301
|
1301 to 1820
|
|
|
|
|
|
|
|
