Meriam Model 355 Precision Absolute Manometer

<< Previous in Meriam Instruments Next in Meriam Instruments >>
Meriam Model 355 Precision Absolute Manometer
OUR PRICE: THIS MODEL WAS DISCONTINUED AND REPLACED BY M2 SERIES, PLEASE CALL FOR PRICING
Item Number: 355
Manufacturer: Meriam Instruments
Manufacturer Part No: 355

 Meriam Model 355
 Precision Asolute Manometer


Available to an accuracy level
+/-0.02% of Full Scale

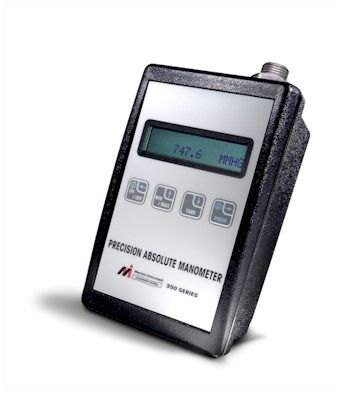

     Meriam's model 355 Precision Absolute Manometer
puts calibration bench accuracy in a portable,
handheld unit. The pressure sensor is all 316ss
allowing it to be used with liquids, gases and
corrosives compatible with 316ss. This combination
of accuracy and fluid compatibility makes the 355
ideal for test or process applications.
The model 355 has a programmable altitude function
that allows the user to enter the site altitude
above sea level in feet or meters. This allows the
user to chose between displaying local barometric
pressure or pressure corrected to sea level. User
set altitude or altitude based on U.S. Standard
Atmosphere of 1962 can be displayed. The altitude
function used with the Min/Max and Tare makes
the model 355 useful as a surveyor's tool by
accurately measuring changes in altitude.

FEATURES/SPECIFICATIONS:



    •

Approvals: CE Compliant
    • CSA Intrinsically Option (Grp 1, Div 1, A,B,C,D)

Display: 5 Significant Digit LCD (0.25" high)

2 line x 16 Alphanumeric Characters
    •
NIST Certificate Supplied

Power: 9-volt Alkaline Battery
    • Auto Power Off Feature
    • Storage Temp
: -40 to 140 F (-40 to 60 C)
    •
Operating Temp: 23 to 122 F (-5 to 50 C)

Process Connections: 1/8" Female NPT, 316 SS

Enclosure: 14 Ounce (6.5" X 3.6" X 2.25") ABS Plastic

Isolated AI Sensor for Fluids Compatible with 316SS

Pressure Limits: 4000 mm Hg Abs (AI0900 and AI2000)

Tare: Sets Display to Zero to Allow Measurement of
       V
acuum, Gauge Pressure or Change in Altitude

Min/Max Capture

Damping Rates: User Selectable from 0.1 to 25 Seconds

Selection of Engineering Units: mm Hg, PSI, in. Hg,
      mbar, Bar, kPa, Torr

Altitude: Displayed in Feet or Meters
    • Altitude Can be Set by U
ser

Contrast adjustment for Easy Viewing
    • Accuracy: 355-AI0900 +/- 0.02% F.S. (F.S.=900 mm Hg abs)

355-AI2000 +/-0.015% F.S.* from 0-1000 mm HgA

+/-0.025% F.S.* from 1000-2000 mmHgA
                     *(F.S. = 2000 mm Hg Abs)
