Beta 950 Multifunction Process Calibrator

     The Beta 950 Multi-Function Calibrator provides a feature set
unmatched in high accuracy, hand-held calibrators in its price range. The
Beta 950 Calibrator provides the functions and accuracy associated with
fixed-installation, laboratory instruments, and has everything needed for
virtually any calibration task. Measure and source thermocouples, RTDs,
current, voltage, and frequency, and source pulse trains.

     A communications port compatible with Fluke® 700 Series, Mensor®,
and Martel pressure modules is provided, as is an isolated mA/V read-back

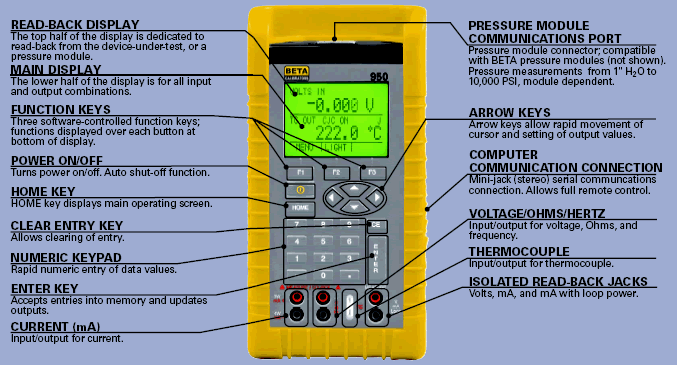

circuit. Arrow keys, direct numeric keypad entry, and three software-driven
function buttons, plus a large backlit, menu-driven graphics display combine to
provide a highly intuitive, simple yet powerful operator interface.

     Built-in 250 Ohm resistor for Hart™ compatibility, compatibility with smart
transmitters and PLCs, full fuseless protection, and a serial communications
port for full control with ASCII commands, are just some of the additional
features that make the Beta 950 the single, most indispensable tool available
for virtually any calibration task. The Beta 950 is supplied in a tough, rubber boot;
a carrying case is also available as an option.

  FEATURES

   •  Measure and source T/Cs (13 types), RTDs (13 types), Ohms, current,
      voltage, frequency; source pulse trains
   •  Isolated mA/V read-back circuit for complete transmitter calibration
   •  Pressure module communication port compatible with Fluke 700 Series,
      Mensor, and Martel pressure modules
   •  Built-in 24 V supply can drive 4-20 mA loops up to 1000 Ohms
   •  Direct entry of custom RTD coefficients(RO, A, B, C)
   •  All source modes can be programmed with dedicated setpoints to
      speed calibration and linearity tests
   •  Highest accuracy in class to 0.015% of reading
   •  Meets CE requirements and is designed to IEC 1010 safety standard

Technical Specifications

(23 C +/-5 C unless otherwise noted)


        Turn Your Beta 950 into a Pressure Calibrator

    The Beta 950 is compatible with Fluke®, Mensor®, and Martel/Beta pressure modules.
(Pressure modules require accessory Model 700MA Module Adapter.)



Order Pressure Modules by Individual Part Numbers: ie 700PA3.
