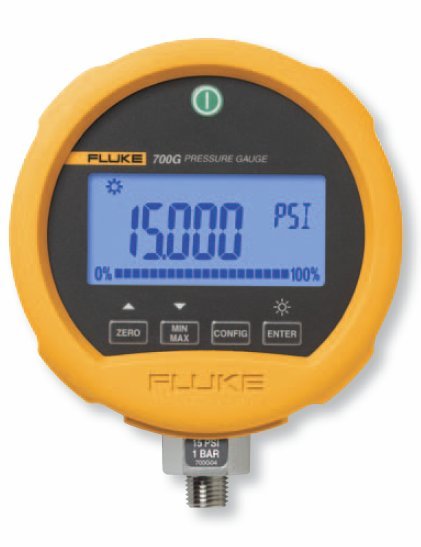

Fluke 700G Digital Pressure Gauge Calibrator

Fluke 700G Digital Pressure Test Gauge Calibrator

700G Series Precision Pressure Gauge Calibrator

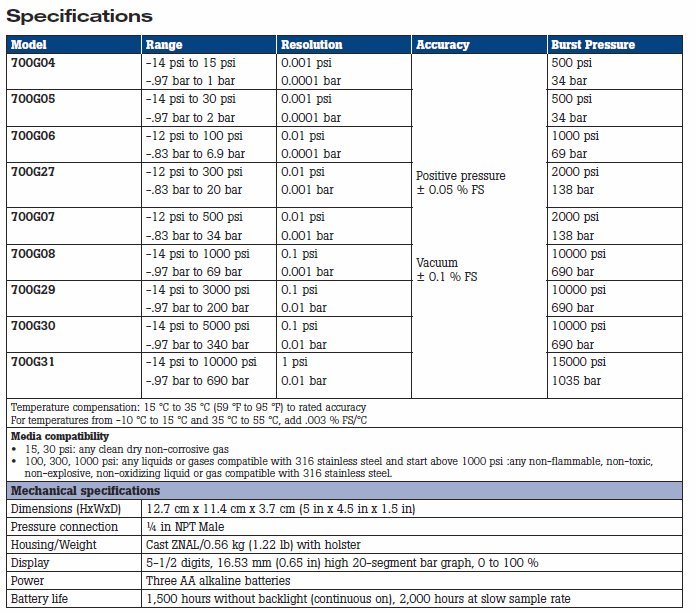

• Available in Nine models ranging from 15 to 10,000 psi
• Large Bright backlit display for easy viewing in low light areas
• Rugged, durable design with protective holster
• High accuracy, 0.05% total measurement uncertainty for one year

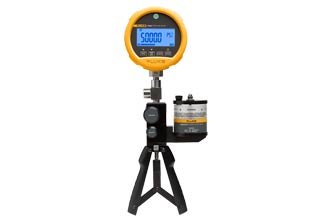

• Combine the Fluke 700G with either the 700PTPK pneumatic pump kit or the 700HTPK hydraulic pump kit for a complete measurement and testing solution
• Demand measurement logging to a PC or to internal memory with Fluke 700G/TRACK software
• Work safely in classified areas known to include explosive gasses;
  • CSA: Class 1, Div2, Groups A-D rating
  • ATEX: rating II 3 G Ex nA IIB T6
• Three-year warranty promises long term value for the investment

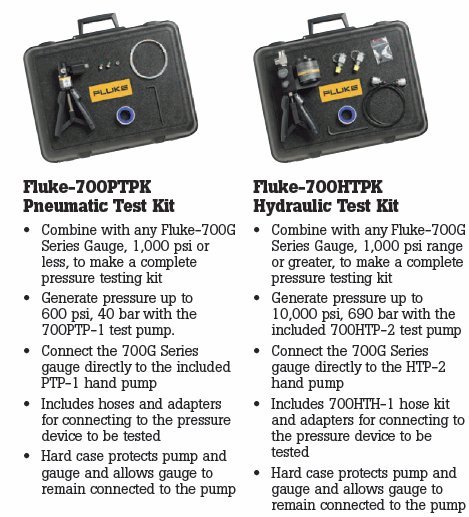

Fluke-700PTPK Pneumatic Test Pump Kit

• Generates pressure up to 600 psig with air
• Connects directly to the 700G series pressure test gauges
• Use kit with Fluke 700PXX pressure modules and Fluke 71x series calibrators
• Includes hoses and adapters for connecting to the pressure device to be tested
• Hard case provided for easy, protective transportation of the gauge and the pump kit

Fluke-700HTPK Hydraulic Test Pump Kit

• Generates pressure up to 10,000 psig using fluids
• Connects directly to the Fluke 700G series pressure test gauges
• Use kit with Fluke 700PXX pressure modules and Fluke 717 calibrators
• Includes high pressure hose kit and adapters for connecting to the pressure device to be tested
• Hard case provided for easy, protective transportation of the gauge or Fluke 71x and the pump kit

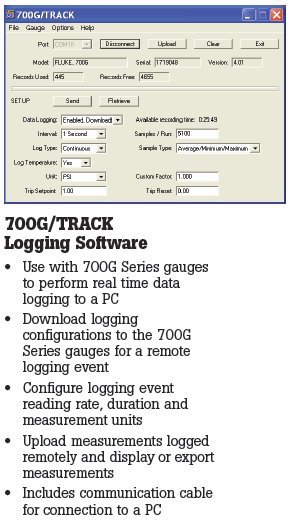

700G/TRACK logging software

• Use with the Fluke 700G series gauges to perform real time data logging to a PC
• Download logging configurations to the 700G series gauges for a remote logging event
• Configure logging event reading rate, duration and measurement units
• Upload measuements logged remotely and display or export measurements
• Includes communication cable for connection to a PC
