Hart Scientific 9144 Field Metrology Well

<< Previous in Dry Block Style Temperature Block Next in Dry Block Style Temperature Block >>
OUR PRICE: $6,435.00
Item Number: 9144
Manufacturer: Hart Scientific
Manufacturer Part No: 9144

Product Options

* denotes required field

Hart Scientific 9144 Model Options*

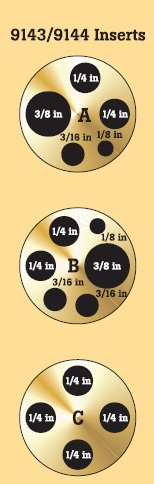

Hart Scientific 9144 Insert Selection
NIST Traceable Calibration*

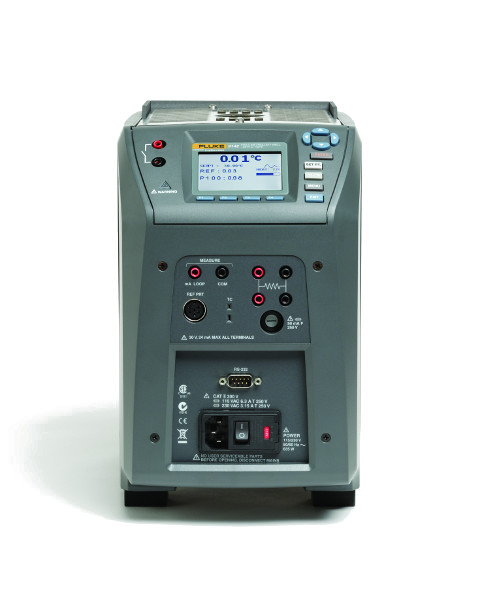

Hart Scientific 9144 Field Metrology Well

Hart Scientific 9144 Field Metrology Well



The new 9144 Series Field Metrology Wells extend high performance to the industrial process environment by maximizing portability, speed, and functionality with little compromise to metrology performance.  These industrial temperature loop calibrators are perfect for performing transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the “process” option, there is no need to carry additional tools into the field. This optional built-in two-channel readout reads resistance, voltage, and 4–20 mA current with 24 volt loop power. It also has on-board automation and documentation.



Features:

  • Lightweight, portable, and fast
  • Cool to:
    660 C to 50 C in 35 minutes
    660 C to 100 C in 25 minutes
  • Heat to:
    50 C to 660 C in 15 minutes
  • Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
  • True reference thermometry with accuracy to +/-0.01 C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading


Specifications:

Temperature Range at 23 C  50 C to 660 C(122 F to 1220 F)
Display Accuracy  +/- 0.35 C at 50 C
+/- 0.35 C at 420 C
+/- 0.5 C at 660 C
Stability  +/- 0.03 C at 50 C
+/- 0.04 C at 420 C
+/- 0.05 C at 660 C
Axial Uniformity at 40 mm (1.6 in)  +/- 0.05 C at 50 C
+/- 0.35 C at 420 C
+/- 0.5 C at 660 C
Radial Uniformity  +/- 0.02 C at 50 C
+/- 0.05 C at 420 C
+/- 0.10 C at 660 C
Loading Effect (with a 6.35 mm reference
probe and three 6.35 mm probes)
+/- 0.015 C at 50 C
+/- 0.025 C at 420 C
+/- 0.035 C at 660 C
Hysteresis  0.1
Operating Conditions  0 C to 50 C, 0 % to 90 % RH (non-condensing)
Environmental Conditions (for all specifications
except temperature range)
13 C to 33 C
Immersion (Well) Depth  150 mm (5.9 in)
Insert OD  24.4 mm (0.96 in)
Heating Time

15 min: 50 C to 660 C

Cooling Time  35 min: 660 C to 50 C
25 min: 660 C to 100 C
Resolution  0.01 Deg
Display  LCD, C or F user-selectable
Size (H x W x D)  290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
Weight  7.7 kg (17 lb)
Power Requirements  1800 W
Computer Interface  RS-232 and 9930 Interface-it control software included

 9144 Includes:

  • Users Manual
  • Technical Manual on CD
  • Serial Cable
  • 9930, Interface-itSoftware
  • Report of Calibration
  • Insert Removal Tool

9144-_-P Includes:

  • Users Manual
  • Technical Manual on CD
  • Serial Cable
  • 9930, Interface-it Software
  • Report of Calibration
  • Test leads
  • Insert Removal Tool
  • 6-pin DIN Connector for Reference Probe
