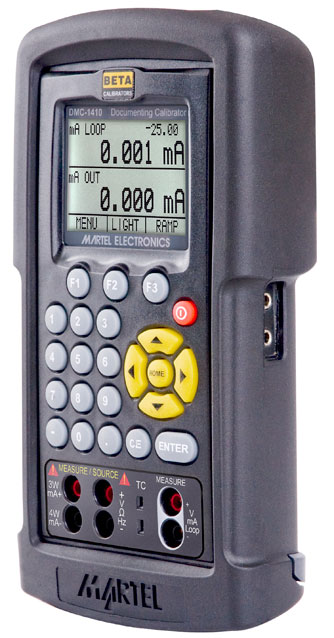

Martel Electronics DMC-1410 Documenting Multifunction Process Signal Calibrator

Martel Electronics DMC-1410 Documenting Multifunction Calibrator

     The Martel DMC 1410 documenting calibrator is a highly accurate, portable hand-held calibrator providing functions and accuracy associated with fixed installation, laboratory instruments, and has everything needed for virtually any calibration task. The DMC-1410 Calibrator fully documents any calibration easily while performing the normal job. No special software is required! It features the ability to test for pass/fail criteria, measure and simulate thermocouples, RTDs, current, voltage, frequency, and source pulse trains.  In addition, the built-in 250 Ohm resistor for HART compatibility with smart pulse type transmitters and PLCs, full fuseless protection, and a serial communications port for full control with ASCII commands.

The Martel DMC-1410 Calibrator Features :

• Simple, straight forward, Intuitive user interface
• New ClearBrite Graphic Display
• New streamlined case design
• Easy to learn yet powerful 3 Key Martel Menu System
• Maintain calibration data for 50 instruments in non-volatile memory
• Print calibration certificates without PC
• Communications port compatible with BetaPort-P pressure modules
• All source modes can be programmed with dedicated set-points
• Built-in 250 Ohm resistor for HART compatibility with smart transmitters and PLCs
• Direct entry of custom RTD coefficients (R0,A,B,C)
• Meets CE Requirements and is designed to IEC 1010 safety standards
• Includes Full Rubber boot, test leads, and factory test report












Pressure Measurement Capabilities - Martel Electronics offers 29 standard pressure modules, covering gauge, vacuum, absolute, compound, and differential measurements. All modules are directly compatible with the Beta-Gauge II.With the Model BPPA-100 Pressure Module Adapter, all modules (with the exceptionof the DC measurement model) are fully compatible with the Martel MC-1210 and MC-1010 Multi-Function Calibrators, the BetaGauge 330, 321A, 311A and 301 Pressure Calibrators, the DMC-1410 Documenting Multi-Function Calibrator, and the Martel Electronics M2001 and 3001 Laboratory/Bench Standards. Pressure ranges may be displayed in any of 13 user selectable units.Water density correction factors of 4 °C, 20 °C, or 60 °F can be selected for either water column unit. The choice of pressure unit may be restricted by limitations on resolution of the instrument display of the particular calibrator the module is used with. For optimum mechanical strength, external pressure connection is made by a 1/8” FNPT 316SS connector welded to a stainless steel metal plate.
