Martel Electronics MC-1210 Multifunction Process Signal Calibrator

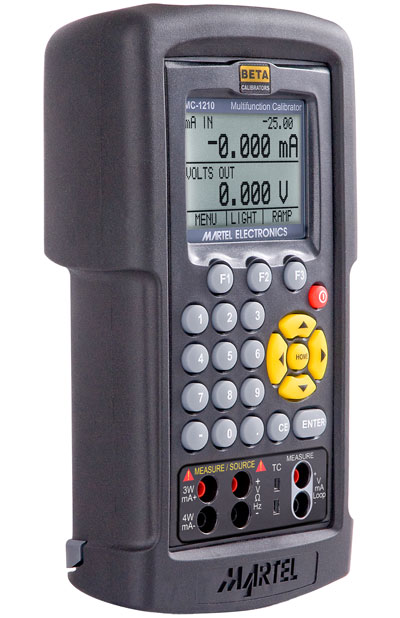

Martel Electronics MC-1210 Multifunction Process Calibrator

    This Martel MC-1210  provides a unique feature set unequaled in high accuracy, hand-held process signal calibrators in its price range. The Martel MC-1210 multifunction calibrator provides the functions and accuracy associated with fixed-installation, laboratory instrument, and has everything needed for virtually any calibration tasks. Measure and source thermocouples, RTDs, current, voltage, and frequency, and source pulse trains. A communications port compatible with both Fluke 700 Series and Beta Calibrator pressure modules is provided, as is an isolated mA/V read-back circuit. Arrow keys, direct numeric keypad entry, and three software driven function buttons, plus a large back-lit, menu-driven graphics display combine to provide a highly intuitive, simple yet powerful operator interface. Built-in 250 Ohm resistor for HART compatibility, compatibility with smart transmitters and PLCs, full fuseless protection, are just some of the additional features that make the process calibrator the single most indispensable tool available for virtually any calibration task. This multifunction calibrator is supplied in a tough, rubber boot; a carrying case is also available as an option.

The Martel MC-1210 Calibrator Features :

• Simple, straight forward, Intuitive user interface
• Easy to learn yet powerful 3 Key Martel Menu System
• New ClearBrite™ Graphic Display
• New streamlined rugged case design
• Measure and source thermocouples (13 types), RTDs (13 types), Ohms, current, voltage, frequency; source pulse trains
• Isolated mA/V read-back circuit for complete transmitter calibration
• Communication port compatible with both Fluke 700 Series and  Beta Calibrator pressure modules
• Built-in 24V loop power supply can drive 4-20 mA lops up to 1000 Ohms
• Direct entry of custom RTD coefficients (Ro, A, B, C)
• All source modes can be programmed with dedicated setpoints to speed calibration and linearity tests
• Highest accuracy in class to 0.015% of reading
• Meets CE requirements and is designed to IEC 1010 safety standards
• Supplied in full rubber boot; optional carrying case available
• Includes Factory test report with calibration data
• In addition to the standard unit is the MC1210-50 version.
  All the functionality of our standard MC1210 with the ability to source/measure 50 milliamps.
  The part number for the 50mA version is 1919910












Pressure Measurement Capabilities - Martel Electronics offers 29 standard pressure modules, covering gauge, vacuum, absolute, compound, and differential measurements. All modules are directly compatible with the Beta-Gauge II.With the Model BPPA-100 Pressure Module Adapter, all modules (with the exceptionof the DC measurement model) are fully compatible with the Martel MC-1210 and MC-1010 Multi-Function Calibrators, the BetaGauge 330, 321A, 311A and 301 Pressure Calibrators, the DMC-1410 Documenting Multi-Function Calibrator, and the Martel Electronics M2001 and 3001 Laboratory/Bench Standards. Pressure ranges may be displayed in any of 13 user selectable units.Water density correction factors of 4 °C, 20 °C, or 60 °F can be selected for either water column unit. The choice of pressure unit may be restricted by limitations on resolution of the instrument display of the particular calibrator the module is used with. For optimum mechanical strength, external pressure connection is made by a 1/8” FNPT 316SS connector welded to a stainless steel metal plate.
