Tek Know PC700 Hydraulic Pressure Calibrator (Discontinued, Replaced by PC705)

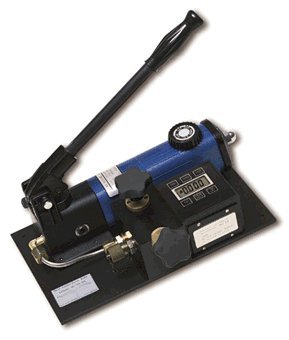

Tek Know PC700 Hydraulic High Pressure Calibrator

Discontinued Replaced by PC705 (Click Here for Details)

The PC700 offers precision pressure calibration in any environment. With the PC700, test pressure is generated by the integrated hydraulic pump and is read from a four-digit LCD display.  It uses a specially formulated hydraulic oil, which reduces wear under high pressures. The operating temperature range is -10 to 50C.
The PC700 is an obvious choice for all of your on site pressure calibration needs. It utilizes a special thin film strain gauge transducer with built-in temperature compensation. Because the thin film strain gauge is about 1/12 the thickness of a bonded strain gauge, it’s more flexible. Therefore, accuracy, long-term stability, fatigue, and product life are all improved. Unlike some other pressure calibrators, accuracy is maintained when decreasing pressure, which makes it ideal for verifying hysteresis.

Features:

• Accuracy and stability: High accuracy, to 0.05% due to improved thin film strain gauge transducer
• Fine Tune Pressure Control: Control source pressures via fine tune adjust knobs
• Reliable, rugged design: Built for reliable performance under the most severe conditions
• Portable: Light-weight, with no fragile reference gauges
• Semi-automatic calibration: With FREE PRE-CAL Windows™-based software

Technical Specifications:
